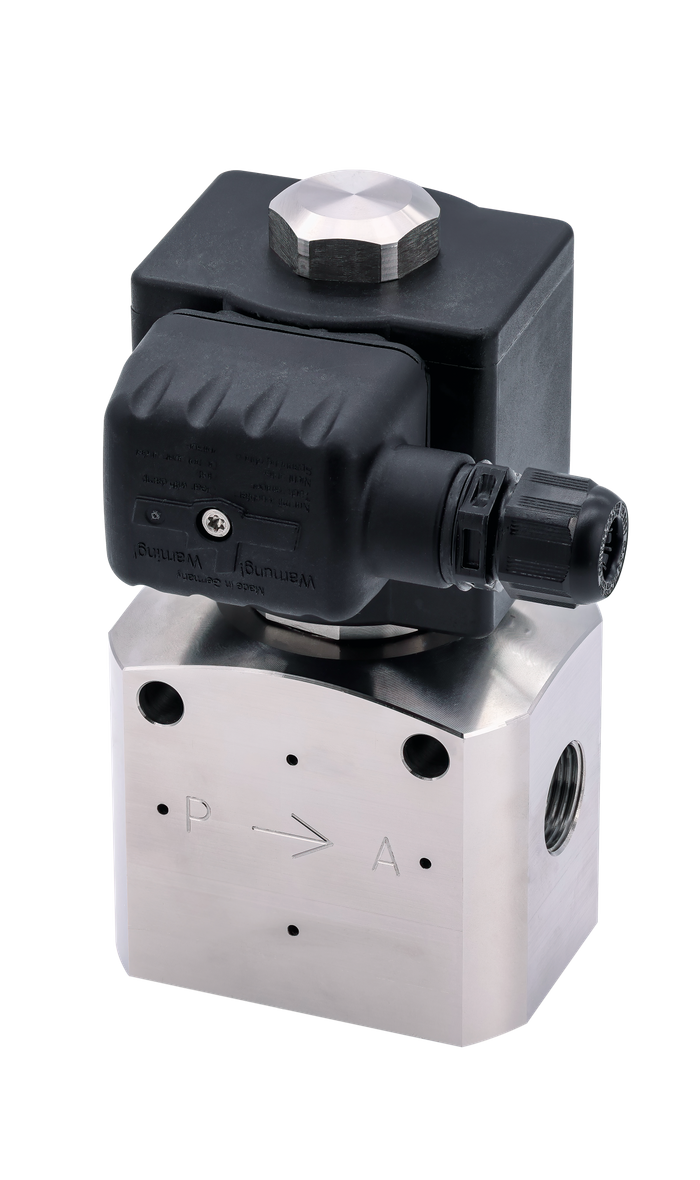

Series 83830/83840 High pressure solenoid valve DN 8 & DN 13 with integrated check-valve
)
High pressure solenoid valve DN 8 + DN 13
83830 (1,050 bar) / 83840 (550 bar)
Maximum inlet pressure: 1,050 bar
Function: 2/2 normally closed
No internal or external soft sealing
Operating pressure range: 10 … 1050 bar
Burst pressure: 3.000+ bar
Port size: 13/16-16 UNF and 3/4-14 NPS cone &
thread for MP tubing
Material: All fluid wetted, pressure retaining parts
made from 316L / 1.4404
)
)
)
)
