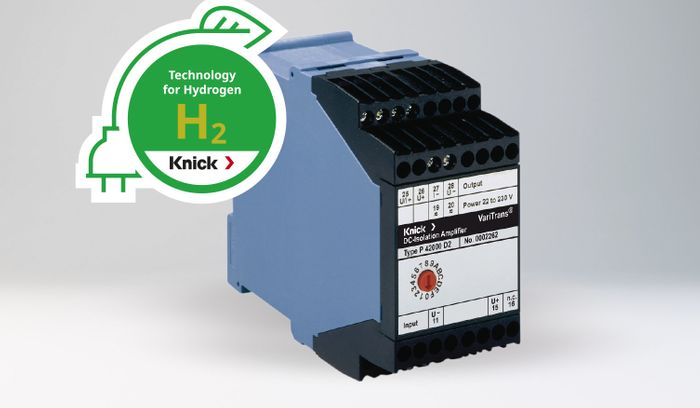

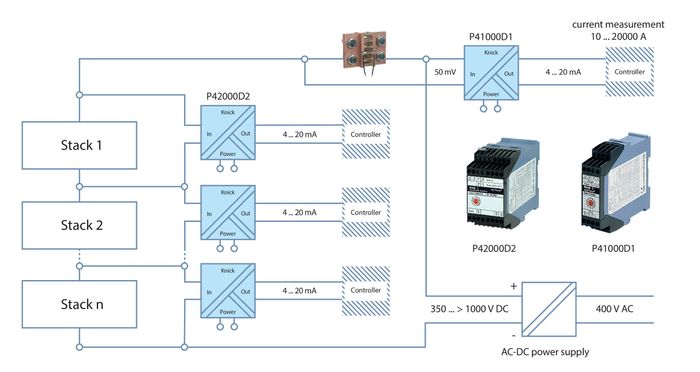

The P42000 is a high voltage transducer capable of measuring up to ±3600 V AC/DC, making it ideal for stack and string voltage monitoring in electrolyzer and fuel cell systems. With calibrated switching for up to 16 input/output ranges, working isolation up to 3600 V, and excellent accuracy and noise immunity, it offers reliable and flexible performance in high voltage hydrogen applications.

The P42000 achieves these capabilities in a compact footprint, 67.5 mm wide for up to 3600 V working voltage. It features a gain error of < 0.3%, a T90 response time of ~110 µs, and a 5 kHz bandwidth, enabling accurate and fast signal processing. Designed for harsh environments, this device is suitable for hydrogen installations and demanding test environments.
